Polyurethane Silent - 74 SHA Casting Resin

Stock: 156 g (120+36) + 74 ShA:  6 pcs
156 g (120+36) + 80 ShA:  7 pcs
156 g (120+36) + 90 ShA:  5 pcs
260g (200+60) + 90 ShA:  1 pcs
260g (200+60) + 74 ShA:  2 pcs
260g (200+60) + 80 ShA:  2 pcs
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin
Polyurethane Silent - 74 SHA Casting Resin

Use this polyurethane casting resin for home replacement, refurbishment and repair of  vibration dampers.

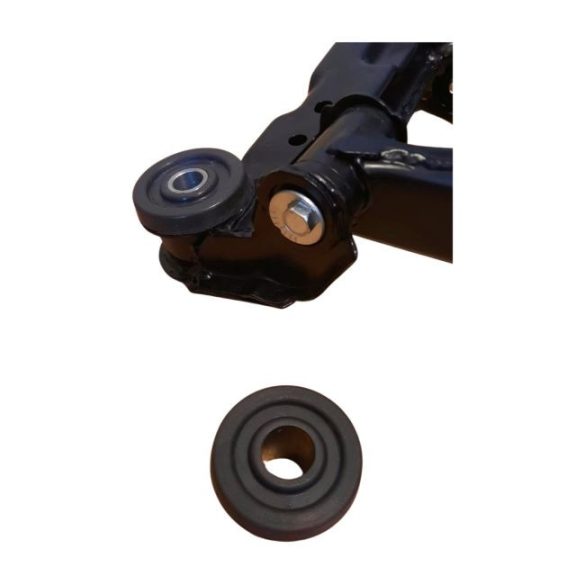

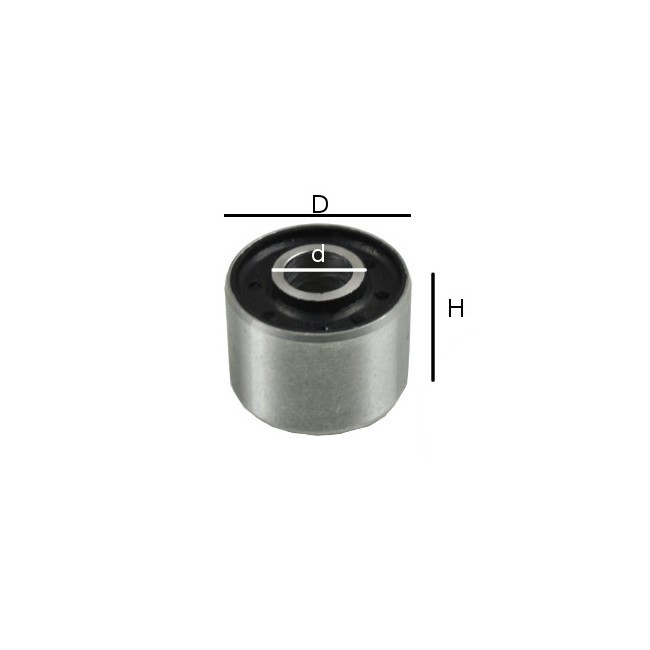

  • Refurbishment of bushings: In case only the rubber part has been damaged and a carrier metal sleeve still can be used, it is normally enough to cast the polyurethane resin into and that’s it. Of course you have to wait until the full hardening which is tipically some days.  The required quantity os polyurethane resin can be calculated as follows:  volume: H * (D2-d2) * 3.14 / 4. This has to be converted to mass The gravity of our resin is about 1.2 g/cm3. So the needed material: volume * 1.2. Look at the meaning of the Letters  in one of the product images.
  • It is something different in case you want to cast the vibration damping rubber separately. Then you'll even need a silicone mould. However, this can easily be prepared and then cast a lot of polyurethane bushings.



The casting resin is available in four different hardnesses: 74 Shore A, 80 Shore A, 90 Shore A.




Each Shore "A" hardness has a different isocyanate to polyol mixing ratio.

Shipping Cost :
1200 Ft
Delivery Time :
1 nap
7.78
To Favourites
Recommend
Print
Question about the product
Info
Details
Similar products
Opinions
Details
Similar products
Info
Raw material state
liquid
Pot life
15 minute
Viscosity
1 000 mPas
Tear resistance
31 N/mm
Gravity
1.25 g/cm3
Shore Hardness
74 ShA
Mix Ratio
100 : 30 tömeg %
Stock
156 g (120+36) + 74 ShA:  6 pcs
156 g (120+36) + 80 ShA:  7 pcs
156 g (120+36) + 90 ShA:  5 pcs
260g (200+60) + 90 ShA:  1 pcs
260g (200+60) + 74 ShA:  2 pcs
260g (200+60) + 80 ShA:  2 pcs
Article No.
APU104
Status
In Stock
Weight
156 g/pcs
